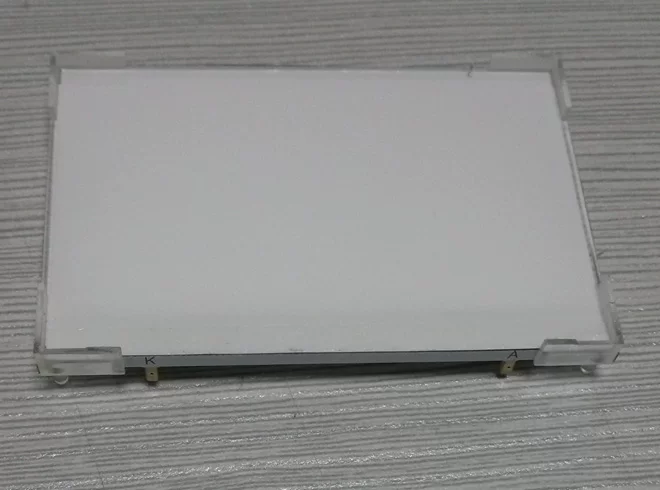

Backlight For lCD LX-12864P1 And LX-12864P

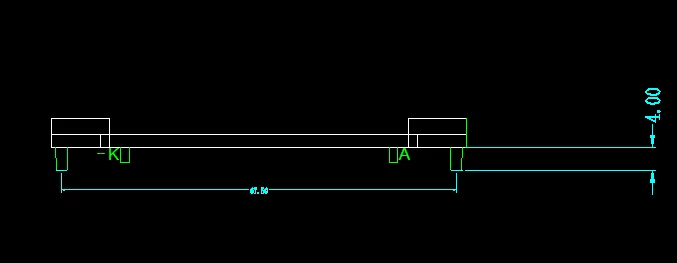

Drawing thickness:
Bottom View:

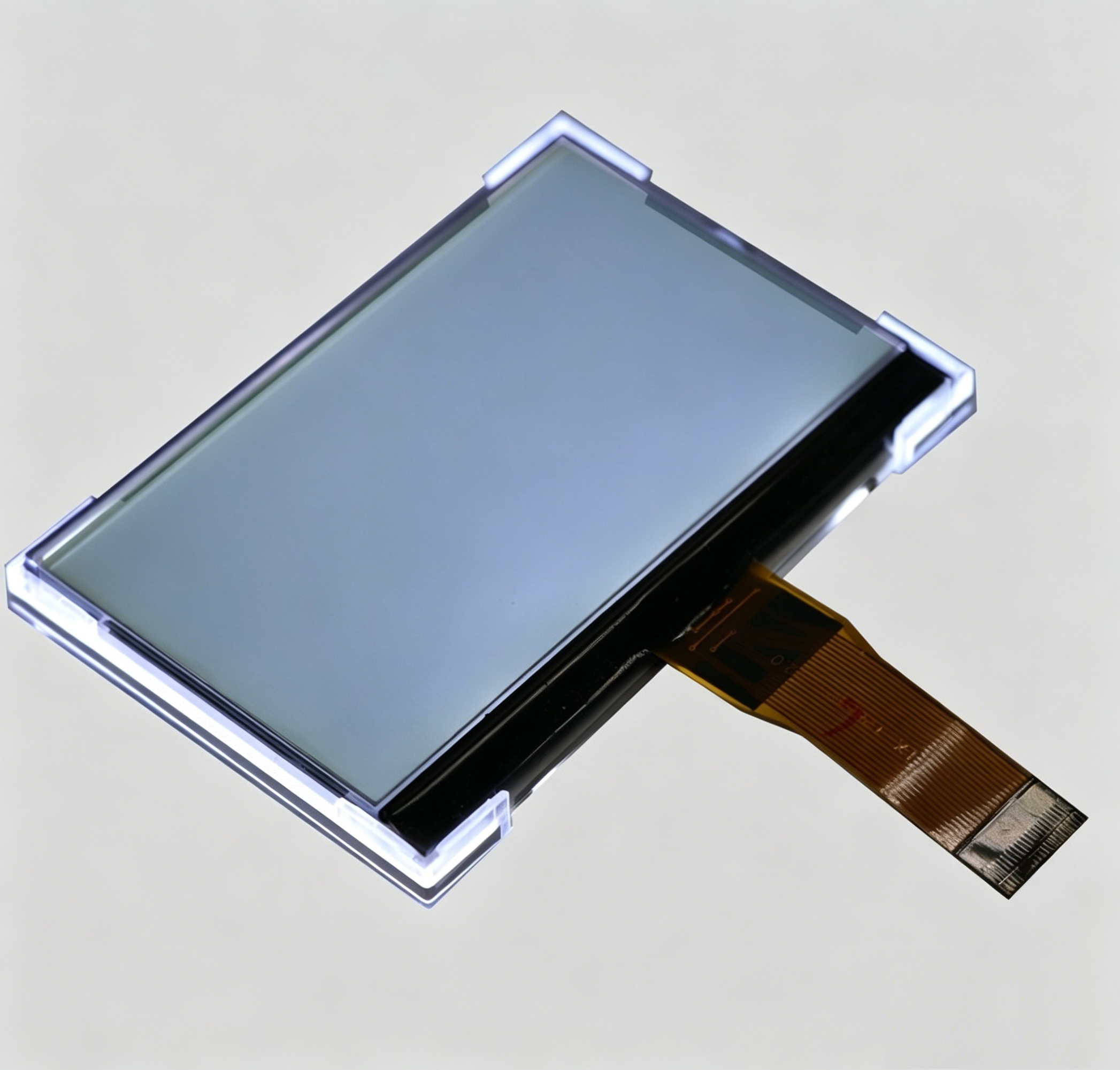

Below are the matched LCD:

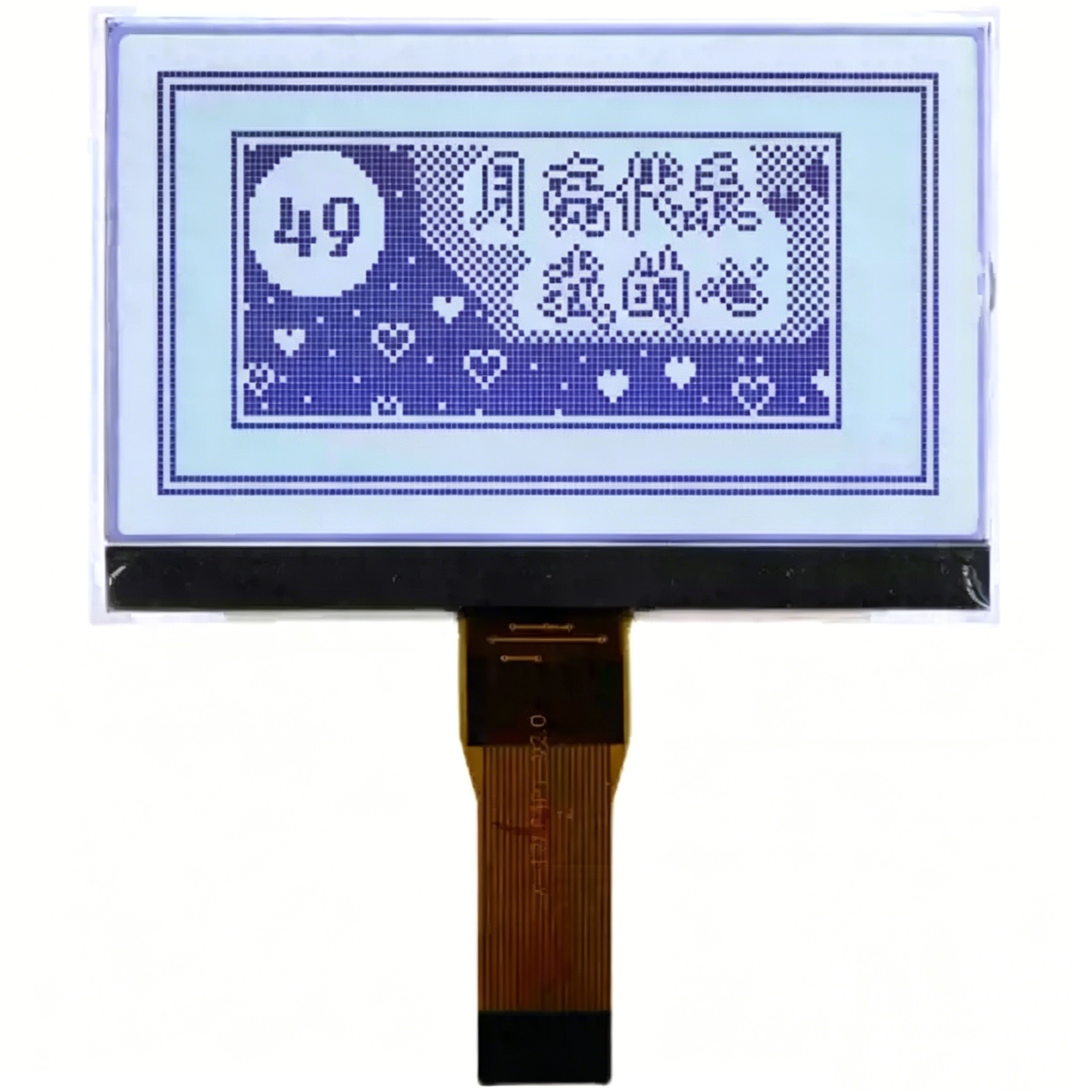

3.2-Inch serial port 128*64 dot matrix LCD display screen LCD module LX-12864P1-V3.0
LX-12864P1 LCD module is compact, lightweight, easy to use, and provides clear display, making it widely applicable to various human-machine interface panels.
This model can display 128 columns * 32 rows of monochrome dot matrix images, or 8 Chinese characters per row * 4 rows of 16*16 dot matrix text, or 16 English letters, numbers, and symbols per row * 8 rows of 8*8 dot matrix text.
It features powerful input commands, allowing for various input, display, and movement modes to meet diverse requirements.
It can be widely used in various standard indoor products at normal temperatures,such as office equipment, PM2.5 detectors, POS card readers, attendance systems, access control systems and home display terminals.
Application:
office equipment, PM2.5 detectors, POS card readers, attendance systems,
access control systems, and home display terminals.
Feature:
2.1. Thin, lightweight, and robust structure; FPC, plug-in assembly process.
2.2. COG process, powerful functionality, and high stability.
2.3. Display content: 128*64 dot matrix monochrome image; Optional 16*16 dot matrix or other dot matrix images for user-defined Chinese characters; based on 16*16 dot matrix Chinese characters, it can display 8 characters/line * 4 lines.
2.4. Powerful instruction functions: Can be combined into various input, display, and shift modes to meet different requirements;
2.5. Simple and convenient interface: Simulated SPI interface.
Specifications:
Green Background in Black letters:
Grey Background in Black Letters:

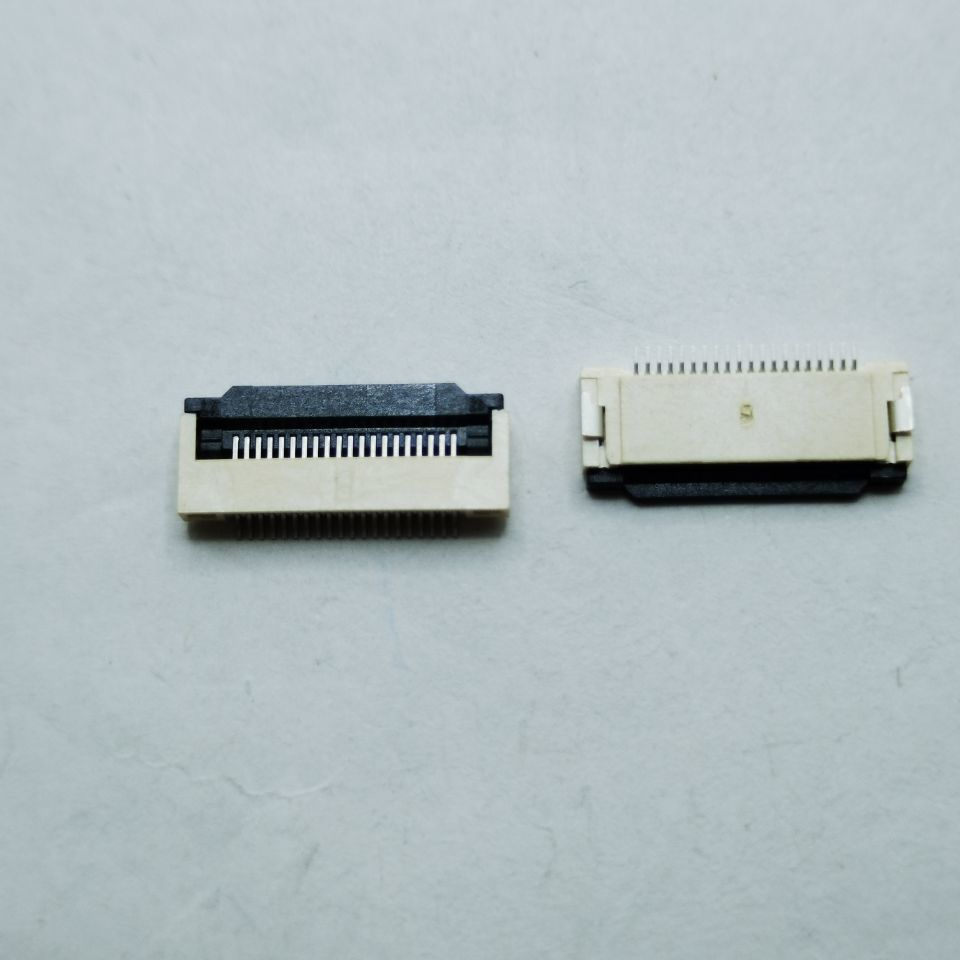

Matched Connectors:
|
|
Backlight For lCD LX-12864P1 And LX-12864P Images
|
